Станок гидроабразивной резки
Системы гидроабразивной резки применяются, когда нежелательно термическое воздействие на материал и требуется высочайшая точность.Они убеждают гибкими варианты обработки для множества задач по резке самых разных материалов.
  • Highly precise and without thermal influence

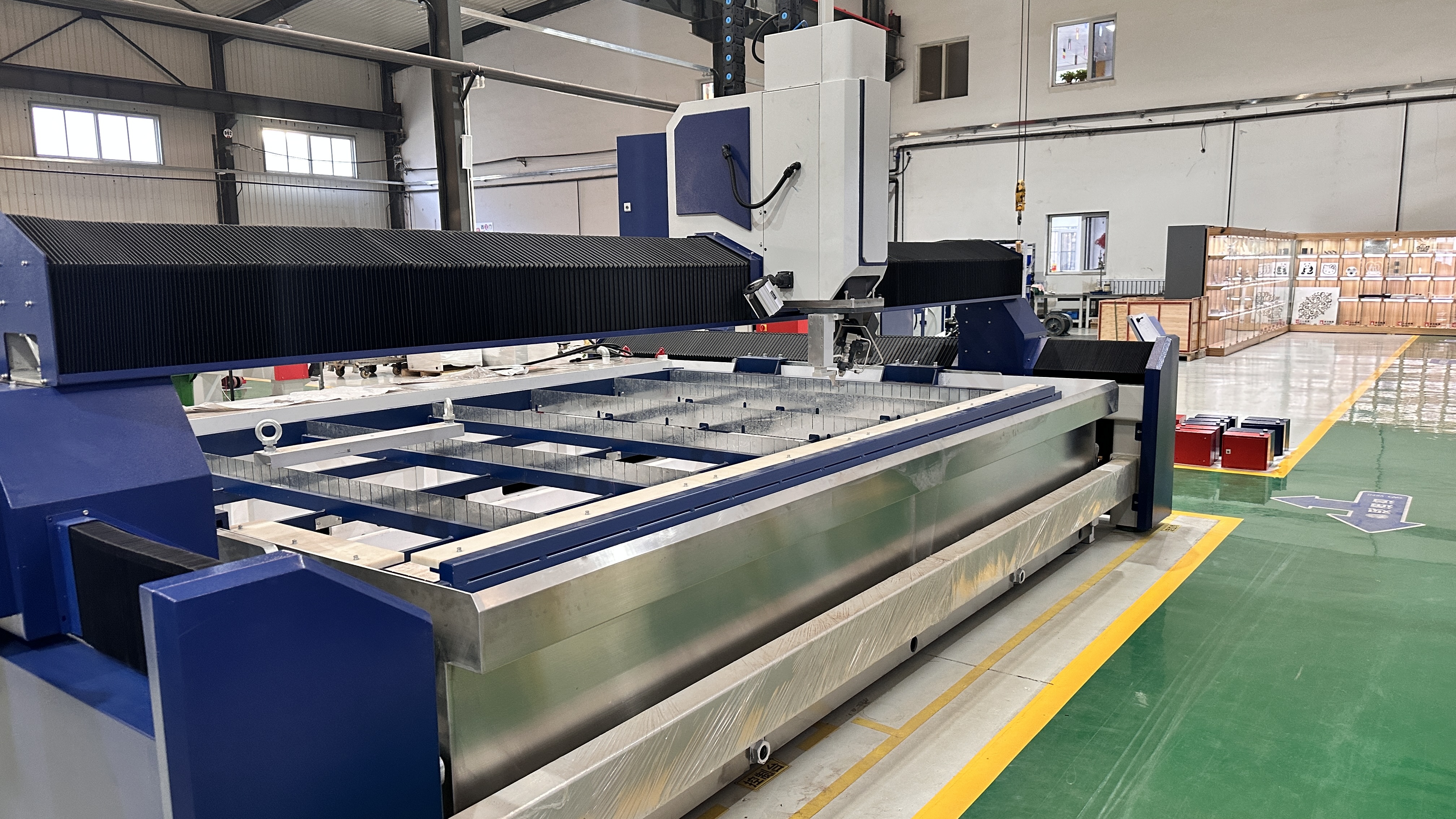

    This is a high-precision CNC waterjet cutting machine designed to machine a wide variety of materials, including those that cannot withstand thermal or mechanical stress.
    Pure water or abrasive cutting can be applied to metal, stone, marble, tempered glass, ceramics, plastics, wood, thick corrugated cardboard, foam and sandwich materials, etc.

    The machine can be equipped with a 75 degree 5-axis waterjet rotator for bevel cutting, combined with plasma, pipe and profile cutting or tapping. Additional features include Additive Bevel Processing (ABP) and Taper Compensation (ABC).

    • Cutting accuracy +/- 0.1mm
    • Positioning accuracy +/- 0.02mm
    •PC control 17" touch screen
    •NcStudio PC1MC=6A software *changes DXF documents from AutoCAD into NC process
    •Serial communications between PC and CNC. Open database can shore parameter, click the material parameter will be loaded automatically
    •Calculate length of line and cut-in automatically
    •Control cut-out and cut-in automatically

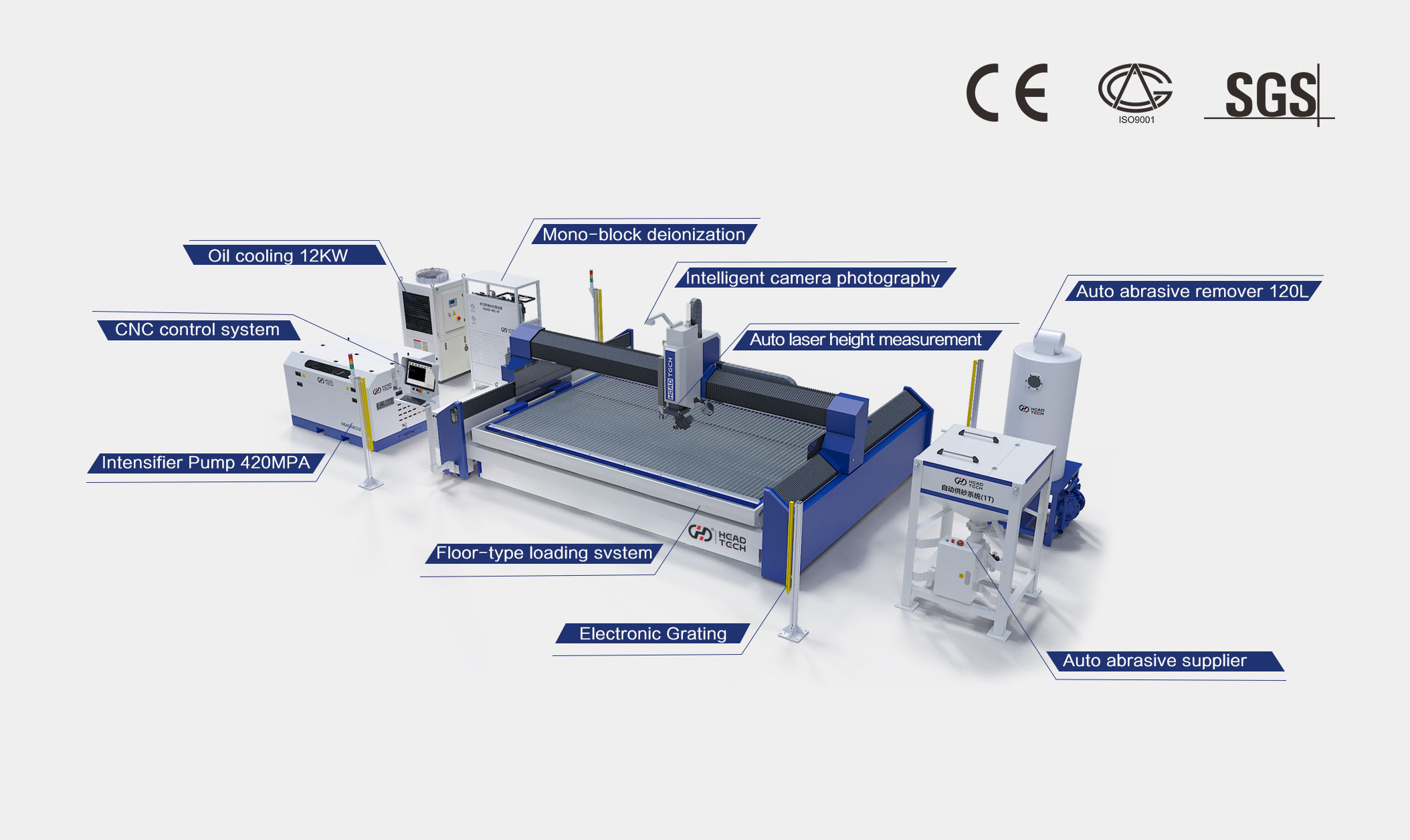

    •High Pressure Pump from 3800 Bar/55,000 Psi - 4137 Bar/60,000 made by Accustream/Hypertherm USA
    •Cooling system
    •Abrasive feeder
    •Water cleaning gun
    •Tool kit
    •Consumables for one year
  • Technical specifications

    X Y Positioning Accuracy ≤±0.05 mm per 300 mm
    Positioning Accuracy +/-0.02 mm
    X,Y dry-run Speed  0-15m/min (if need 30m/min speed,we can do as request )
    Cutting Accuracy  ±0.1mm
    Repeat Accuracy   ≤ ±0.03mm
    Max. Speed X, Y  10000mm/min

    • Water jet working table independent of the frame, eliminate vibrations and  temperature deformations; keep long time of work.
    • Water tank is reliable and durable, made of steel 5 mm thick.Height 750 mm, convenient for loading and unloading
    • • Slope-type folding cloth protection structure prevents the accumulation of sand splashed during water cutting, which affects the accuracy and life of the stroke.
    • • Z axis is equipped with a lighting system, which is convenient for monitoring and equipment maintenance during equipment operation
    • • Dedicated thick metal cutting water tank, platform load-bearing capacity is 500kg more than similar competing products, longer service life


    • • Integrated integrated CNC system, suitable height, ergonomic design concept The display can be rotated 360 degrees to meet the needs of the operator from all angles
    • • Upgrade to IP65 waterproof and dustproof computer, keyboard and mouse IP65
    • • Increase the splash protection to improve the safety and life of the equipment
    • • An air-conditioning control system is added inside the CNC cabinet. Most of the cooling systems on the market are still cooled by fans to ensure the operating temperature of the electrical components of the equipment and improve the stability of the equipment.
    • • A lighting system is added inside the CNC cabinet to facilitate equipment maintenance and reduce the difficulty of operator maintenance2023-3-1 集成控制柜细节展示(一体控制柜)32023-3-1 集成控制柜细节展示(一体控制柜)1
    • • Function to continue from the same point after stopping.
    • • Automatic programming function.
    • • Pre-cut path simulation function
    • • Automatic tool compensation adjustment function.

    图片9图片10

Приоритет постоянства качества и точности

Мы HEAD Waterjet, и мы также предлагаем индивидуальные решения для резки

Мы производим и поставляем высокопроизводительные, надежные и интуитивно понятные решения для гидроабразивной резки.

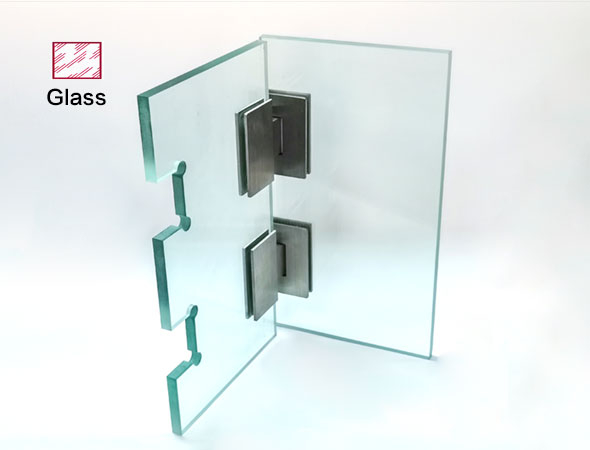

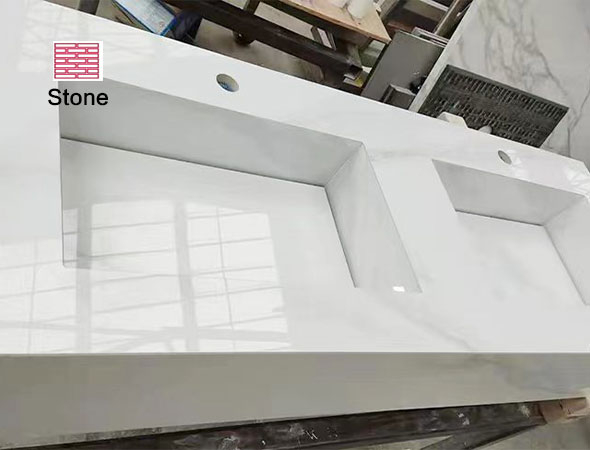

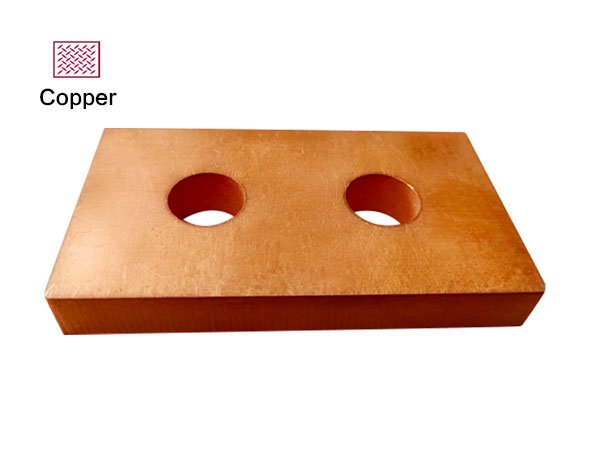

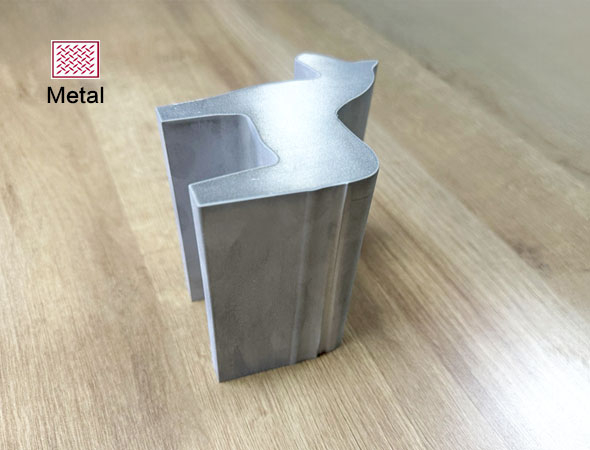

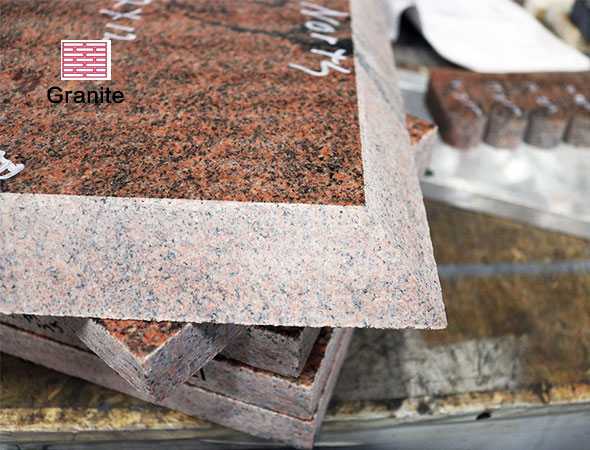

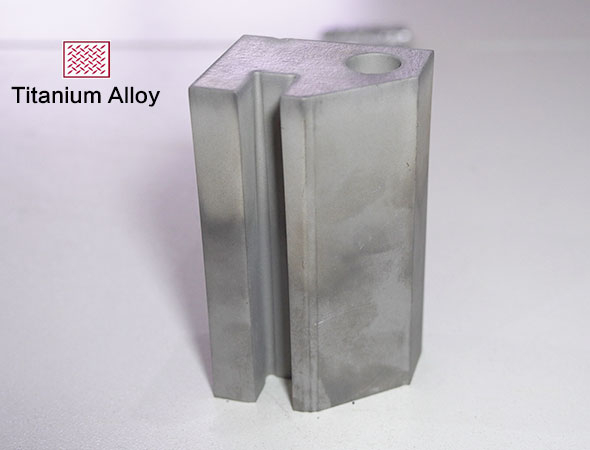

Образцы гидрорезки здесь
Чтобы дать вам более интуитивное представление о нашей продукции, мы предоставили бесплатные образцы для резки, надеясь, что вы сможете быстро понять принцип работы и характеристики нашего оборудования для резки водой.
Профессиональная местная техническая команда послепродажного обслуживания
Мы предоставляем квалифицированные консультации от квалифицированных технических специалистов.Мы стремимся предоставлять передовую поддержку станков для гидроабразивной резки, чтобы обеспечить развитие отрасли.
Отрасли, которые мы обслуживаем

За более чем десятилетие мы построили и установили тысячи станков для гидроабразивной резки в различных отраслях промышленности для удовлетворения конкретных потребностей производства и резки материалов.

Поскольку Head имеет прочные исследования и разработки, команда по продажам и обслуживанию производства, руководителя Shenyang Head Science и Technology Co., Ltd стала известными предприятиями в области Waterjet.
